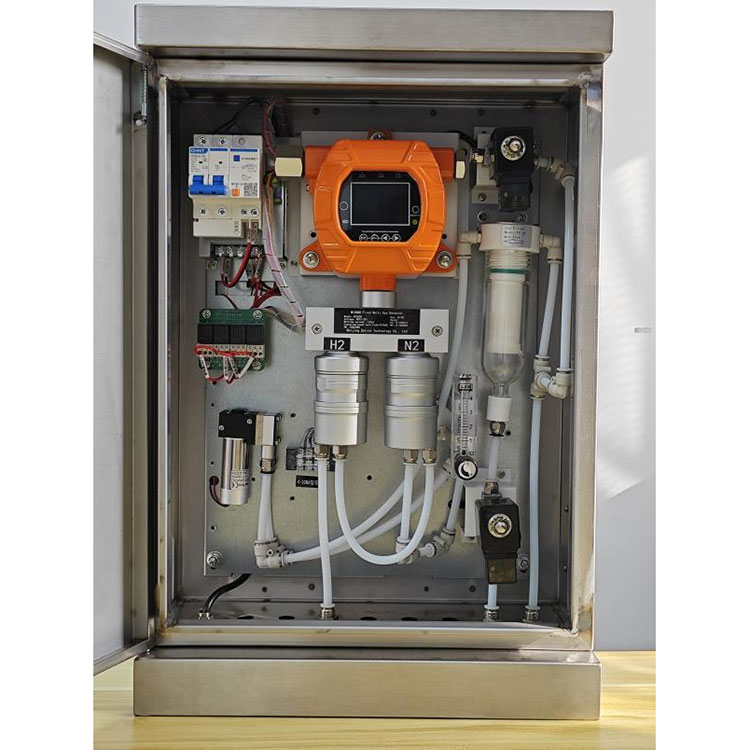

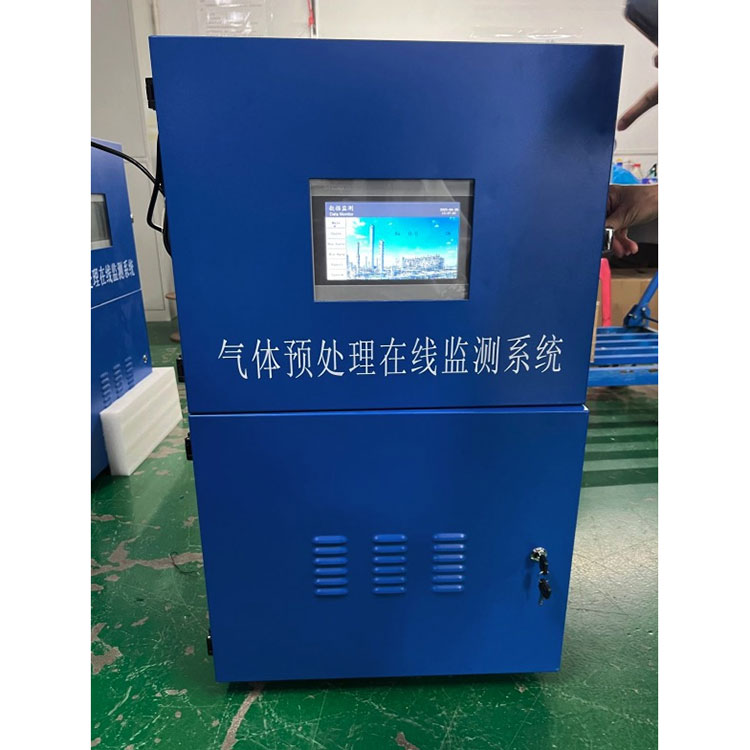

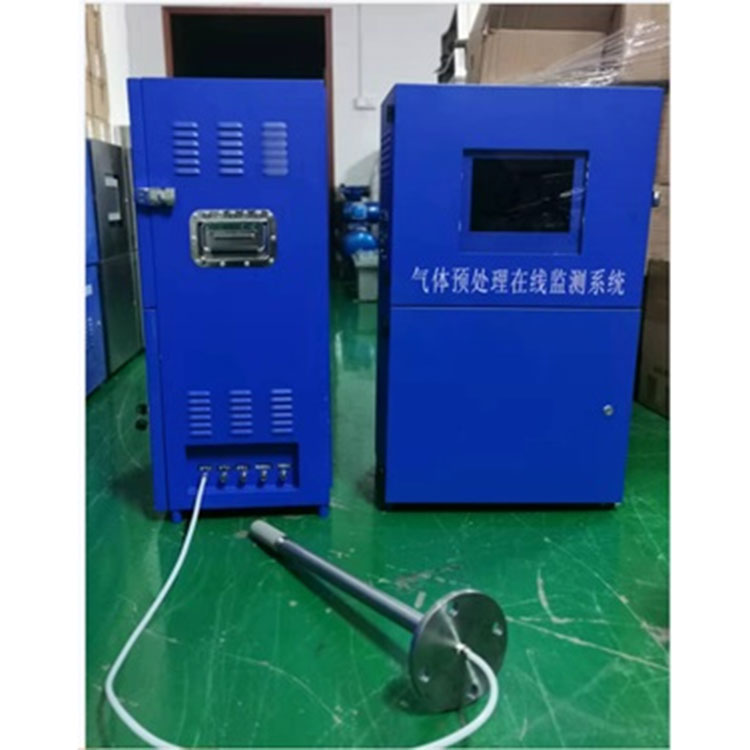

Internetinė nuolatinė dujų analizės sistema

FEATURES:

● ISO,CE,FCC, ROHS Approved

● IP66 with explosion-proof & waterproof design

● Built-in high-efficiency two-stage condensation anti-humidification and dust removal pretreatment system

● High measurement accuracy, can measure ultra-low concentration

● Real-time display of each gas component concentration curve

● Multi measurement methods:automatic and manual modes,

● Built-in heating device, automatically starts the heating function at low temperature, so that the analyzer can be used in severe cold areas

● Automatic zeroing and calibration function

● Wide temperature and large Multi-angle flip TFT color screen display

● Linux operating system

● Industrial high-speed embedded industrial computer

● Equipped with rich human-computer interface, supports mouse, U disk, keyboard, touchpad, printer and other equipment

● Suitable for harsh working conditions, easy to operate

● Fault self-check function, generates fault report after detection, convenient for user maintenance

● Integrated integrated micro thermal printer or external Bluetooth wireless printer

● Large-capacity data storage

● Optional automatic backflush system

● Standard sampling distance is 30~40 meters,optional up to 70 meters

● Higher temperature flue gas detection and analysis needs to be customized

SPECIFICATIONS

● Single gas detector: CH4 &H2S

● Detection principle:

CH4: High resolution IR sensor,

0-100%VOL, 0.01%VOL resolution

H2S:Professional biogas electrochemical sensor,

0-1000ppm, 0.1ppm resolution

● Linearity:≤±1.5% (F.S)

● Repeatablility：±0.5%

● Zero drift span：±2%F.S./7 days

● Drift operation：±2%F.S./7 days

● Temperature range：- 40℃~70℃，≤95%RH

● Respond time: 45S

● Detection method: pumped type

● Sampling temperature: -40℃~600℃(standard)

optional: -40℃~800℃, -40℃~1300℃,

higher temperature detection and analysis needs to be customized

● Sampling humidity: 0~99%RH

● Protection level: IP66

● Sampling distance: standard 30~40 m, optional upto 70m

● Sampling flow: adjustable, 2 L/m (standard), 4 L/m (optional); 10 L/m (optional)

● Working voltage: 220VAC, 50HZ

● Output signal: 4~20mA, RS485, multi-channel passive contacts

optional: wireless transmission, network transmission

● Dimensions: 800mm * 500mm * 340mm

● Display mode: 9-inch touch color screen display

● Printing mode: optional wireless Bluetooth printer

● Alarm mode: optional integrated sound and light alarm, external type

● Warranty time: 1 year
